Start with the size chart for the exact brand, model and model year, then shortlist the sizes the manufacturer recommends for your height and inseam. Check each frame’s standover height, stack and reach, the saddle adjustment range, and where the handlebars and brake levers end up. If you fall between two sizes, run both through the same checks and test them when you can.
Start with the size chart for the exact bike
A size chart for one brand’s road bike tells you very little about a gravel bike from another brand, even when both frames carry an S or a 52 cm label. Find the manufacturer’s chart or sizing tool for the exact model and model year. Some charts list rider-height ranges, and others also ask for inseam.
Write down the brand, model, year and recommended size range first. That stops you from comparing charts for two different versions of the same bike. If you sit near the boundary between two sizes, keep both on your shortlist.
Size charts and geometry charts answer different questions

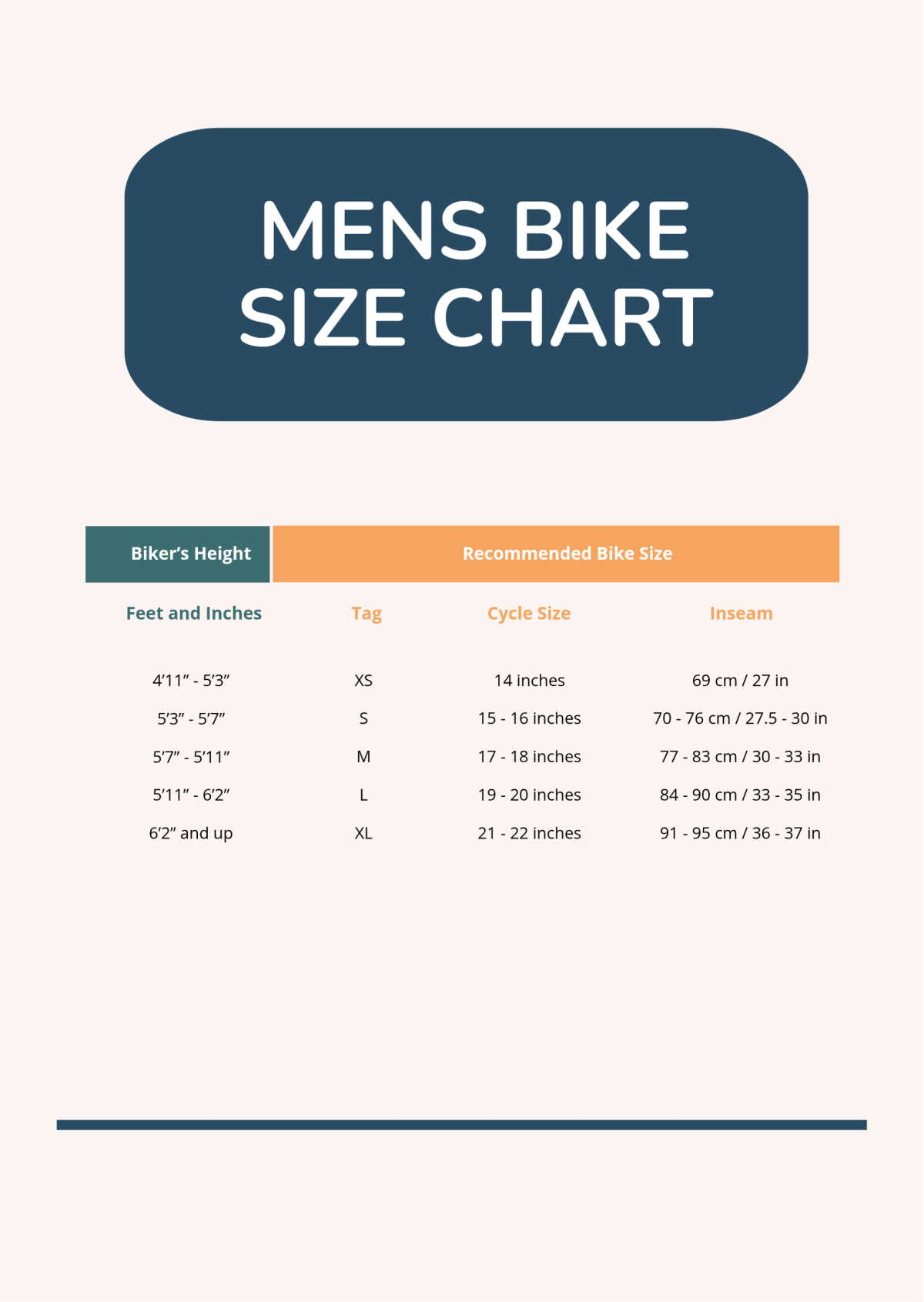

A size chart matches rider measurements to suggested frame sizes. It gives you a starting point. A geometry chart describes the bike itself: its frame reference points, its standover height and the other dimensions that shape the finished bike. Fit verification comes after both. It tells you whether the frame gives you a workable saddle position, lets you reach the controls and suits the way you ride.
Work in this order: shortlist sizes from the chart, compare their geometry, screen standover and saddle range, verify handlebar position and brake access, then decide.
Different stores will often recommend different sizes, say 48, 50 and 52 cm. Those labels are nominal sizes under each manufacturer’s own conventions, so compare the geometry of each candidate, including bikes that carry the same label.
Measure your height and inseam accurately
Measure both the way the manufacturer of your bike instructs. For height, stand upright against a wall and measure from the floor to the top of your head, following any posture and footwear instructions the manufacturer gives. Your cycling inseam needs a separate measurement. The length printed on a pair of jeans is a clothing size and can differ from the body measurement a bike manufacturer expects.
Measuring inseam with a book
REI’s bike fitting guidance describes a method that needs a hardcover book and a wall.
- Prepare: Wear your cycling shoes and stand upright against a wall. Use a different footwear convention if the bike manufacturer specifies one.
- Position the book: Hold a hardcover book spine-up between your legs and raise it snugly.
- Mark the height: Keep the book level and mark the spine’s height on the wall.
- Measure: Measure vertically from the floor to the mark. Repeat if the result looks inconsistent, especially near a size boundary.
A second person makes this easier by holding the book steady and marking the wall. Record the result with its units, converting inches to centimeters if the chart needs it.

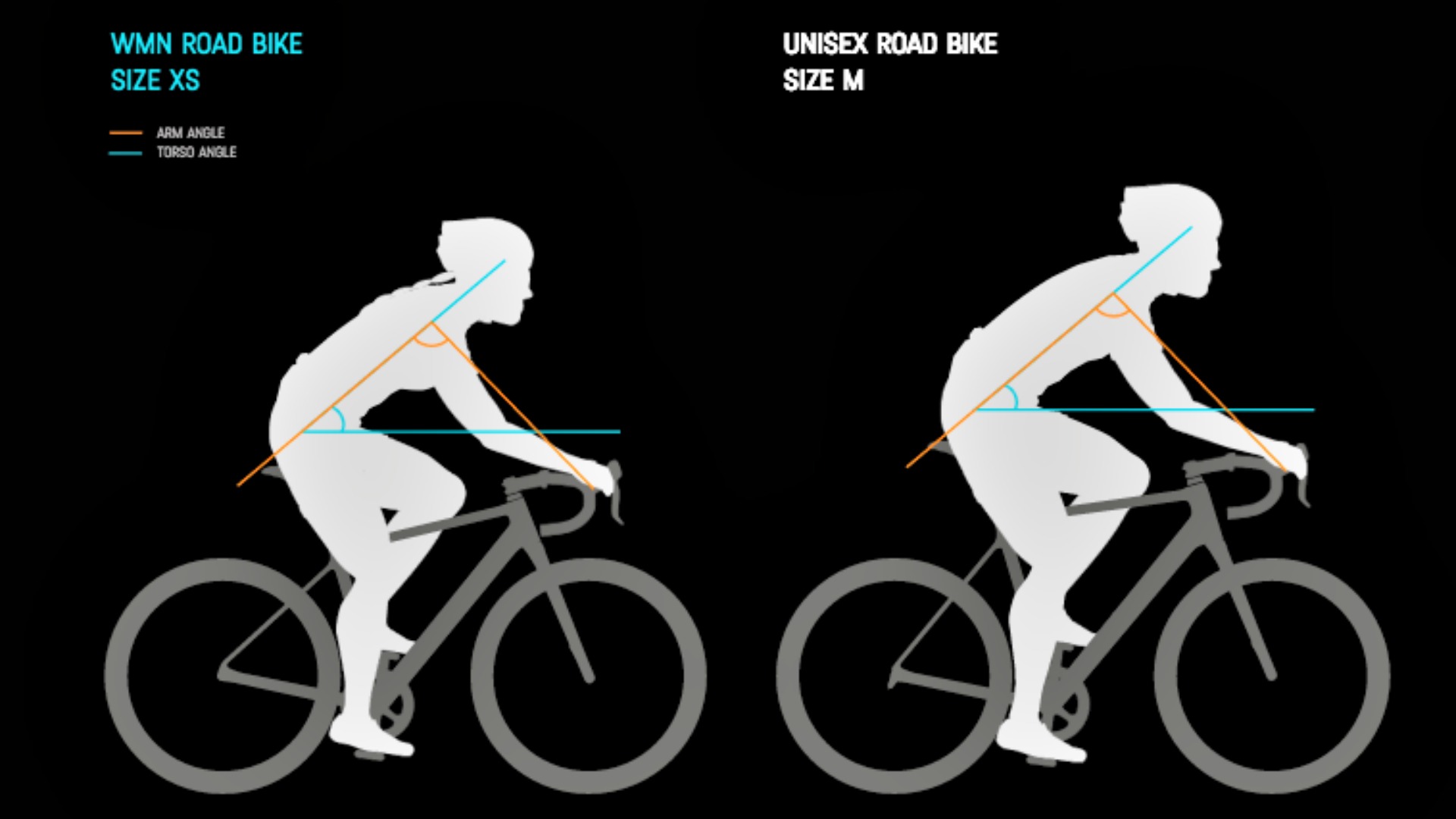

Why two equally tall riders can need different frames
Picture two riders of the same height. One has long legs and a short torso. The other has a shorter inseam and a longer torso. The first needs a high saddle but may find the front of a given bike hard to reach. The second faces the reverse problem. Saddle height and reach pull each rider toward a different frame.
In a discussion about sizing a Trek Checkpoint, a rider with long legs and a short torso got opposing advice depending on which dimension the adviser looked at. The way out is to check whether one complete setup meets both requirements. Test saddle adjustment and front-end reach on each candidate separately, because one cannot stand in for the other.
A seller may suggest a different stem or handlebar arrangement. Before you accept that, confirm the part is compatible with that bike and that the position stays within its component limits. If the size chart gives height bands only, keep your measured inseam for the standover and saddle checks.

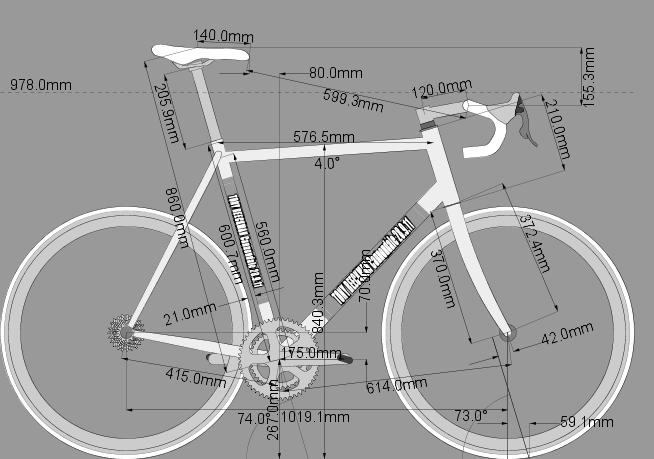

Read standover, stack and reach without mixing them up
Standover concerns standing over the frame and getting off the bike. Stack and reach describe where the front of the frame sits relative to the bottom bracket, the frame area that houses the crank axle. Each measurement answers a different question.
| Measurement | What it describes | What to check |
|---|---|---|
| Standover height | Manufacturer-defined height at a point along the frame or top tube | Standing clearance and ability to dismount |
| Frame reach | Horizontal distance between the bottom-bracket reference and the front frame reference | Lengthwise frame geometry |
| Frame stack | Vertical distance between those frame reference points | Height of the frame’s front end |
| Effective top tube | A geometry-based horizontal top-tube length reference | Additional frame-length context |
| Reach to handlebar | An assembled-bike measurement, where the manufacturer provides and defines it | Handlebar-distance differences between comparable builds |
| Saddle adjustment range | Available position within seatpost and component limits | Whether the saddle position you need is achievable |

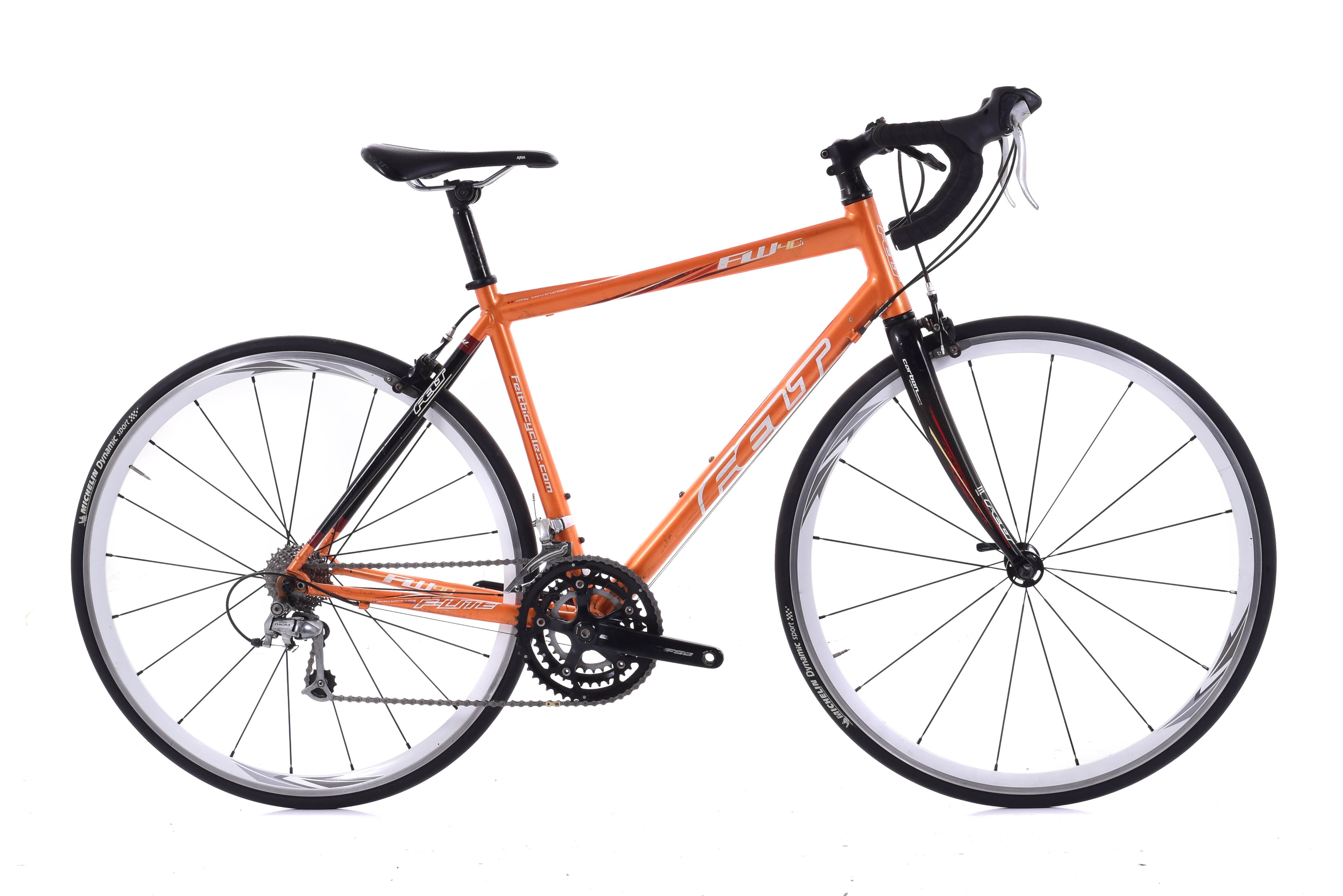

Standover height: the space you need when stopping
Standover matters when you stand over the frame, put a foot down or get off the bike. A rider who was 4’8″ tried XS road and gravel bikes with 700c wheels and said the top tube made her feel insecure. The test is simple: can you stand over the frame and dismount comfortably?
Passing that test settles only standover. Saddle position and handlebar reach still need their own checks once you are on the bike.
Top-tube shape changes the space you have. A sloping top tube or a step-through frame alters how you mount and dismount. Manufacturers define the standover measuring point differently, so read the published method and try the actual frame where you can.
Stack and reach: the frame’s front-end position
Frame reach is the horizontal distance from the bottom-bracket reference to the upper head-tube reference. Stack is the vertical distance between the same points. Together they locate the front of the frame relative to the crank area, which explains why frames with similar nominal sizes place their front ends differently.
Your hands sit beyond those reference points. The assembled cockpit, meaning the handlebars, stem, spacers and brake levers, decides where they land. Stem length and angle, handlebar shape and brake-lever placement all count, and so does your saddle position. Effective top tube gives another view of frame length and adds context when you read it next to stack and reach, as long as the frames use comparable definitions.
Wheel labels such as 700c, 650b, 27.5-inch and 29-inch describe wheels, not frame size. Take frame size from the manufacturer’s sizing and geometry information. Check any wheel change for compatibility separately, since swapping wheels does not fix a wrong frame size.
Why equal frame reach doesn’t mean equal handlebar reach
The 2026 Liv Avail Advanced 0 shows how neighboring sizes can share one frame dimension and differ everywhere else. According to the manufacturer’s US chart, sizes XS, S and M share a frame reach of 373 mm. Their stack, standover and reach-to-handlebar figures all change with size.
Once you have a workable frame size, Check saddle and handlebar fit after choosing frame size before fine-tuning the bike.
2026 Liv Avail Advanced 0 geometry
The figures below come from the manufacturer’s published chart for this model year. All measurements are in millimeters.
| Manufacturer measurement (mm) | XXS | XS | S | M |
|---|---|---|---|---|
| Frame stack | 510 | 528 | 547 | 566 |
| Frame reach | 363 | 373 | 373 | 373 |
| Standover height | 683 | 712 | 737 | 762 |
| Reach to handlebar | 408 | 420 | 429 | 439 |
| Stock stem length | 70 | 70 | 80 | 90 |
Compare XS with S. Frame reach stays at 373 mm, stack rises by 19 mm and reach to handlebar grows by 9 mm. Standover and stock stem length change too. The same pattern holds from S to M. Reading frame reach alone would hide the changes in front-end height and cockpit specification.
Liv’s reach to handlebar is a manufacturer-defined measurement of the assembled bike, so compare it only within one measurement convention. Your own distance from saddle to brake hoods also depends on saddle position and the components fitted. The stem row shows the stock build, but it does not isolate the stem’s share of the handlebar-reach difference.
Frame stack and reach stay the same on the 2026 Liv Avail Advanced 0 even if a shop installs a different stem or handlebar. If the stock cockpit changes, verify the assembled handlebar position before you compare builds.
For any other model, look up its own geometry and component data. The Liv Avail Advanced 0 specifications show the level of model-specific detail you need.
Between two sizes? Run both through the same checks
If the chart puts you between two sizes, compare both against the same requirements. The better one fits your measurements and your intended riding position without failing a critical check. Clearance, saddle travel and control access can rule out a size before riding preferences come into play.
Use this two-size worksheet
Fill in the manufacturer’s published dimensions for your actual bike, then add results from a test ride or measurements confirmed by a retailer. Write “unknown” wherever the evidence is incomplete.
| What to compare | Size A | Size B |
|---|---|---|
| Manufacturer, model and year | Fill in | Fill in |
| Official frame size | Fill in | Fill in |
| Manufacturer’s recommended rider range or sizing-tool result | Fill in | Fill in |
| Standover height (mm) | Fill in | Fill in |
| Mounting and dismounting | Pass / fail / unknown | Pass / fail / unknown |
| Frame stack (mm) | Fill in | Fill in |
| Frame reach (mm) | Fill in | Fill in |
| Cockpit and control access | Pass / fail / unknown | Pass / fail / unknown |
| Saddle adjustment within component limits | Pass / fail / unknown | Pass / fail / unknown |
| Intended riding position and handling | Fill in | Fill in |
| Outstanding measurements or checks | Fill in | Fill in |
| Overall status | Pass / fail / unknown | Pass / fail / unknown |
Mark a check as passed only if you have confirmed it. Everything else stays unknown. One critical failure rules out a frame, even when its other numbers look good.
What the outcomes mean
- Both sizes pass: Compare their riding positions and handling where you plan to ride. A test ride or qualified fitting advice settles the preference.
- Only one passes: That size is your pick. Note why the other failed before you treat the purchase as done.
- Neither passes: Look at a different frame size, model or geometry.
- A check is still unknown: Get the missing measurement, verify the component adjustment limits or arrange a test before you commit.
Road, gravel, mountain, hybrid and step-through bikes need different checks
- Road: Check drop-bar position and brake-lever access.
- Gravel: Check the same points, plus stopping and dismounting on the surfaces you ride.
- Mountain: Handling preferences come into play once the fit constraints are met. Specialized S-Sizing, with labels such as S2, S3 and S4, is one manufacturer-specific example.
- Hybrid: Check the upright position against the actual cockpit geometry.
- Step-through: Assess mounting for the frame’s shape.
Labels such as women’s or unisex give context only. Check the exact bike.
Test in person, or verify the details when buying online
A test ride is the clearest way to learn whether a frame’s dimensions add up to a usable bike. You can stand over it, reach the controls and feel the basic handling in the position you plan to use. Try the actual size and, where possible, a build comparable to the one you plan to buy. A different model with the same size label leaves the geometry and component questions open.
What to check in the shop
Start with the bike stationary in a safe area. Ask for help setting a sensible initial saddle position, with the seatpost kept within the manufacturer’s adjustment and minimum-insertion limits.
- Mount and dismount: Get on and off in a controlled setting. Notice whether the top tube, your footing or the frame shape interferes with a secure stop.
- Reach the controls: Put your hands where you expect to ride. On drop-bar bikes, include the brake hoods and your other intended positions.
- Check brake-lever access: Confirm you can operate the brakes effectively. If the levers are hard to reach, ask whether the actual shifter and lever model supports an approved reach adjustment, then retest after it is set.
- Assess posture: Notice whether you overreach, crowd the bars or sit in a position that doesn’t suit your riding.
- Ride and stop: In a controlled area, check steering, braking and stopping. Some problems show up only while moving.
Lever adjustment depends on the installed components, and handlebar shape and hood placement also affect access. Cycling Weekly’s guide to smaller-rider fit issues covers this. Ask the dealer which adjustment the specific build offers. If an adjustment fixes the problem, make sure the bike delivered to you has the same setup.
What to do when your size isn’t available to test
Small-frame shoppers often can’t find their size locally. In one cycling discussion, a rider who was 5’0″ tall with a 27.75-inch inseam said an older 50 cm Trek Domane felt slightly large, and smaller road-bike test examples were hard to find. A bike that felt too large doesn’t set the right size for an unrelated model.
When you buy remotely, collect enough model-specific information to settle the essential checks before you pay.
- Confirm the frame: Get the exact manufacturer, model, model year and size, with its matching geometry chart.
- Clarify measurements: Ask the seller or manufacturer about any uncertain standover, cockpit or saddle-adjustment detail.
- Check the build: Find out whether the supplied handlebars, stem and other components match the configuration behind the published measurements, and which fit adjustments the build supports within the manufacturer’s limits.
- Understand purchase terms: Learn the seller’s return or exchange conditions before you buy an untested size.
Suppose both sizes cover your height and inseam, but the product information doesn’t settle brake-lever reach. Mark that check unknown and ask for control or assembled-bike details. If a consequential fit problem stays unresolved, postpone the purchase or get a qualified fitter’s assessment. A photograph and your height don’t establish how a bike fits.
When to choose a different frame instead of adjusting a poor fit
A frame is a poor candidate when an essential fit requirement can’t be met within its documented adjustment limits. Ordinary fit adjustments refine a suitable setup, and which ones exist depends on the bike and its components. Reject a candidate, or get a qualified assessment before buying, in these cases:
- Insecure mounting or dismounting: You can’t manage the frame safely under your intended riding conditions.
- Insufficient saddle adjustment: The position you need would exceed the seatpost’s permitted adjustment or minimum-insertion limits.
- Unreachable controls: You can’t operate the brake levers adequately from your intended position, and no approved configuration fixes it.
- Unworkable cockpit: The position you want depends on changes whose compatibility or practicality is unconfirmed.
- Conflicting requirements: One size solves a clearance problem but creates a cockpit problem, while the neighboring size does the reverse.
Changing a stem, handlebar arrangement, spacers or contact-point settings is a legitimate part of a bike fit. The suitable change depends on the components and how you ride. If a critical requirement fails, compare another frame shape or ask an experienced bike fitter to assess the specific bike. Bring your height, inseam and the candidate geometry measurements.
Once a frame passes the checks, detailed saddle positioning and riding-posture adjustments are a separate fitting task. Persistent pain or numbness needs a professional assessment, because a frame-size decision can’t diagnose a physical problem.
Picking the size
A size chart gets a bike onto your list, nothing more. On the exact model, three things settle it: can you stand over the frame and get off safely, does the saddle reach the height you need, and can you hold the bars and work both brake levers without stretching? Fill in the same worksheet for each size, and count a check as passed only once you’ve confirmed it. If one size passes, that’s your bike. If both pass, take a test ride. If neither does, look at a different frame. Anything you can’t confirm yet is a question for the seller or a fitter, so ask while you can still walk away.
